Product Overview

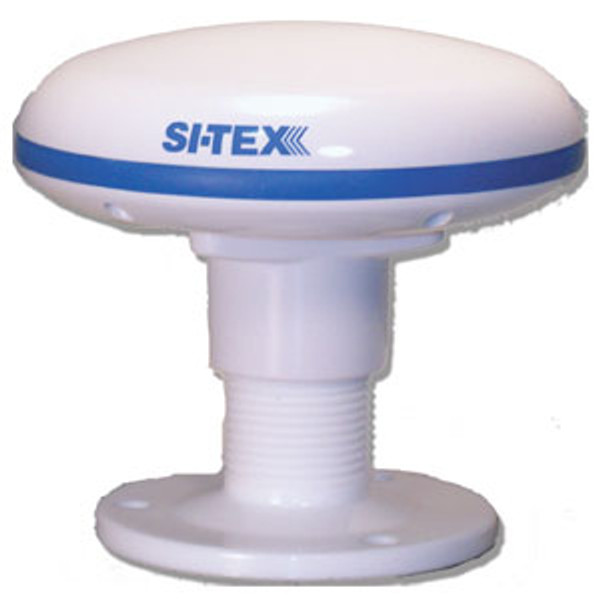

This Sitex GPK-11C NMEA 0183 Output GPS Sensor is Presented By Si-Tex.
GENERAL INFORMATION
Additional Details
Smart SDGPS Sensor Antenna based on a 16 ch. GPS
Specifications| Overal Dimensions | 97 x 32 mm (flush/pole/rail mounting) |
| Weight | 160 grams (without cable) |
| Cable | 15 meter 8 x 28AWG |
| Input Voltage | 10-35V DC |
| Power Consumption | 0.8W max |
| Electrical Interface | TTL voltage levels, RS-232 polarity |
| Recieving Method/Frequency | 16 channels parallel (up to 3 for WAAS Satellites); 1575.42MhZ (LI, C/A code) |
| Time to First Fix (TTFF) | Warm start: 33 seconds (typical); Cold Start: 40 seconds (typical) |
| Accuracy Position | Less than 2.5m CEPI 5.0m SEP2; GPD: (SA=Off, HDOP<4); Less than 2.0mCEPI 3.0SEP2; DGPS: (SA=OFF, HDOP<4) |
| Dynamics Acceleration | Strong Signals <=4g; Weak Signals typical 1g |
| Altitude/Velocity | 1800 m/1850 km/h (515 m/sec) |
| DGPS Format | WAAS; EGNOS; MSAS |
| Output Format/NMEA | 0193 Baud rate 4800 N81; GGA, RMC, GSA, GSV |
| Output Messages | TXT |
| Geodetic Datum | WGS84 |
| Operating Temperature/Storage Temperature | from 0°to +60°C / from 20° to +85°C |
| Relative Humidity/Water Resistance | 95% non condensing/IPX7 |
